14. Control blocks

P4 parsers are responsible for extracting bits from a packet into headers. These headers (and other metadata) can be manipulated and transformed within control blocks. The body of a control block resembles a traditional imperative program. Within the body of a control block, match-action units can be invoked to perform data transformations. Match-action units are represented in P4 by constructs called tables.

Syntactically, a control block is declared with a name, parameters, optional type parameters, and a sequence of declarations of constants, variables, actions, tables, and other instantiations:

\~ Begin P4Grammar [INCLUDE=grammar.mdk:controlDeclaration]

[INCLUDE=grammar.mdk:controlLocalDeclarations]

[INCLUDE=grammar.mdk:controlLocalDeclaration]

  • [INCLUDE=grammar.mdk:controlBody]
    End P4Grammar

It is illegal to instantiate a parser within a control block. For a description of the optConstructorParameters, which can be used to build parameterized control blocks, see Section [#sec-parameterization].

Unlike control type declarations, control declarations may not be generic—e.g., the following declaration is illegal:

\~ Begin P4Example control C(inout H data) { /* Body omitted */ } \~ End P4Example

P4 does not support exceptional control-flow within a control block. The only statement which has a non-local effect on control flow is exit, which causes execution of the enclosing control block to immediately terminate. That is, there is no equivalent of the verify statement or the reject state from parsers. Hence, all error handling must be performed explicitly by the programmer.

The rest of this section describes the core components of a control block, starting with actions.

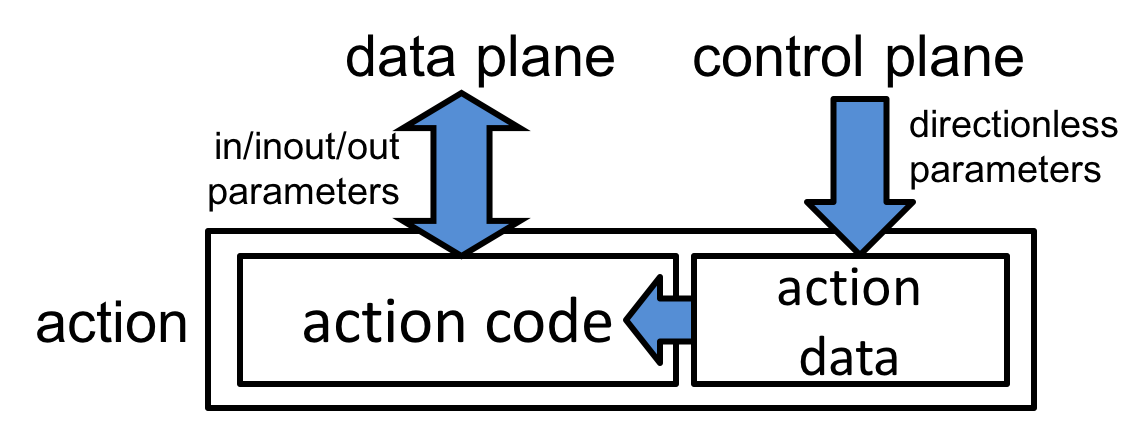

\~ Figure { #fig-actions; caption: “Actions contain code and data. The code is in the P4 program, while the data is provided in the table entries, typically populated by the control plane. Other parameters are bound by the data plane.” } actions \~ actions: figs/actions.png { width: 8cm; page-align: here }

Actions are code fragments that can read and write the data being processed. Actions may contain data values that can be written by the control plane and read by the data plane. Actions are the main construct by which the control plane can dynamically influence the behavior of the data plane. Figure [#fig-actions] shows the abstract model of an action.

\~ Begin P4Grammar [INCLUDE=grammar.mdk:actionDeclaration] \~ End P4Grammar

Syntactically actions resemble functions with no return value. Actions may be declared within a control block; in this case they can only be used within instances of that control block.

  • The following example shows an action declaration:
    Begin P4Example action Forward_a(out bit\<9> outputPort, bit\<9> port) { outputPort = port; } End P4Example

Action parameters may not have extern types. Action parameters that have no direction (e.g., port in the previous example) indicate “action data.” All such parameters must appear at the end of the parameter list. When used in a match-action table (see Section [#sec-table-action-list]), these parameters will be provided by the table entries (e.g., as specified by the control plane, the default_action table property, or the entries table property).

The body of an action consists of a sequence of statements and declarations. No table, control, or parser applications can appear within actions.

Some targets may impose additional restrictions on action bodies—e.g., only allowing straight-line code, with no conditional statements or expressions.

Invoking actions

Actions can be executed in two ways:

  • Implicitly: by tables during match-action processing.
  • Explicitly: either from a control block or from another action. In either case, the values for all action parameters must be supplied explicitly, including values for the directionless parameters. In this case, the directionless parameters behave like in parameters.

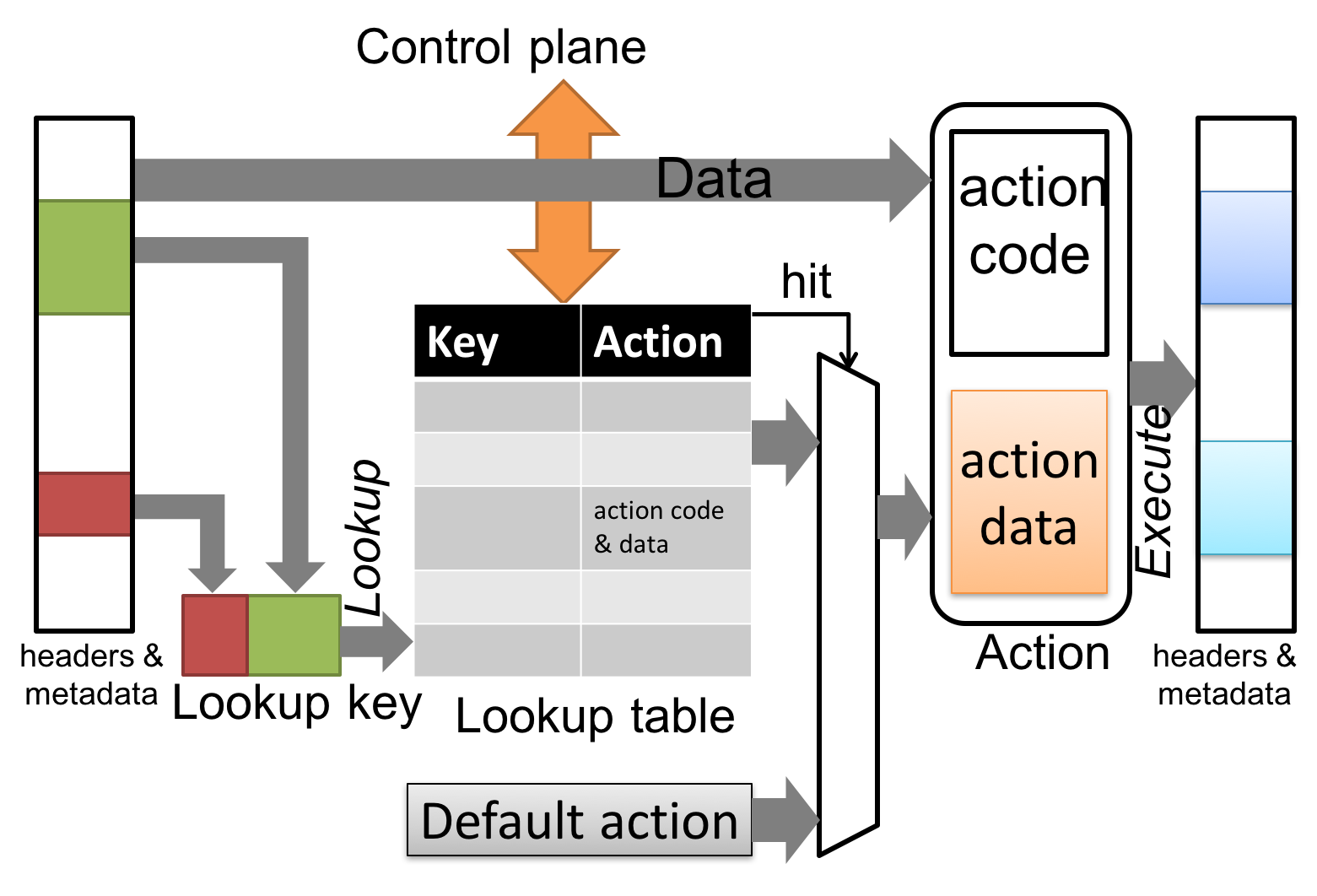

\~ Figure { #fig-maudataflow; caption: “Match-Action Unit Dataflow.” } [maudataflow] \~ [maudataflow]: figs/maudataflow.png { width: 80%; page-align: here }

A table describes a match-action unit. The structure of a match-action unit is shown in Figure [#fig-maudataflow]. Processing a packet using a match-action table executes the following steps:

  • Key construction.
  • Key lookup in a lookup table (the “match” step). The result of key lookup is an “action”.
  • Action execution (the “action step”) over the input data, resulting in mutations of the data.

A table declaration introduces a table instance. To obtain multiple instances of a table, it must be declared within a control block that is itself instantiated multiple times.

The look-up table is a finite map whose contents are manipulated asynchronously (read/write) by the target control plane, through a separate control-plane API (see Figure [#fig-maudataflow]). Note that the term “table” is overloaded: it can refer to the P4 table objects that appear in P4 programs, as well as the internal look-up tables used in targets. We will use the term “match-action unit” when necessary to disambiguate.

Syntactically a table is defined in terms of a set of key-value properties. Some of these properties are “standard” properties, but the set of properties can be extended by target-specific compilers as needed. Note duplicated properties are invalid and the compiler should reject them.

\~ Begin P4Grammar [INCLUDE=grammar.mdk:tableDeclaration]

[INCLUDE=grammar.mdk:tablePropertyList]

tableProperty : KEY ‘=’ ‘{’ keyElementList ‘}’ | ACTIONS ‘=’ ‘{’ actionList ‘}’ | optAnnotations optCONST ENTRIES ‘=’ ‘{’ entriesList ‘}’ | optAnnotations optCONST nonTableKwName ‘=’ initializer ‘;’ ;

  • [INCLUDE=grammar.mdk:nonTableKwName]
    End P4Grammar

The standard table properties include:

  • key: An expression that describes how the key used for look-up is computed.
  • actions: A list of all actions that may be found in the table.

In addition, the tables may optionally define the following properties,

  • default_action: an action to execute when the lookup in the lookup table fails to find a match for the key used.
  • size: an integer specifying the desired size of the table.
  • entries: entries that are initially added to a table when the P4 program is loaded, some or all of which may be unchangeable by the control plane software.
  • largest_priority_wins - Only useful for some tables with the entries property. See section [#sec-entries] for details.
  • priority_delta - Only useful for some tables with the entries property. See section [#sec-entries] for details.

The compiler must set the default_action to NoAction (and also insert it into the list of actions) for tables that do not define the default_action property. Hence, all tables can be thought of as having a default_action property, either implicitly or explicitly.

In addition, tables may contain architecture-specific properties (see Section [#sec-additional-table-properties]).

A property marked as const cannot be changed dynamically by the control plane. The key, actions, and size properties cannot be modified so the const keyword is not needed for these.

Table properties

Keys

The key is a table property which specifies the data-plane values that should be used to look up an entry. A key is a list of pairs of the form (e : m), where e is an expression that describes the data to be matched in the table, and m is a match_kind that describes the algorithm used to perform the lookup (see Section [#sec-match-kind-type]).

\~ Begin P4Grammar [INCLUDE=grammar.mdk:keyElementList]

  • [INCLUDE=grammar.mdk:keyElement]
    End P4Grammar

  • For example, consider the following program fragment:
    Begin P4Example table Fwd { key = { ipv4header.dstAddress : ternary; ipv4header.version : exact; } // more fields omitted }

    End P4Example

Here the key comprises two fields from the ipv4header header: dstAddress and version. The match_kind elements serve three purposes:

  • They specify the algorithm used to match data-plane values against the entries in the table at runtime.
  • They are used to synthesize the control-plane API that is used to populate the table.
  • They are used by the compiler back-end to allocate resources for the implementation of the table.

  • The P4 core library contains three predefined match_kind identifiers:
    Begin P4Example match_kind { exact, ternary, lpm }

    End P4Example

These identifiers correspond to the P414 match kinds with the same names. The semantics of these match kinds is actually not needed to describe the behavior of the P4 abstract machine; how they are used influences only the control-plane API and the implementation of the look-up table. From the point of view of the P4 program, a look-up table is an abstract finite map that is given a key and produces as a result either an action or a “miss” indication, as described in Section [#sec-mau-semantics].

The expected meaning of these values is as follows:

  • an exact match kind on a key field means that the value of the field in the table specifies exactly the value the lookup key field must have in order to match. This is applicable for all legal key fields whose types support equality comparisons.

  • a ternary match kind on a key field means that the field in the table specifies a set of values for the key field using a value and a mask. The meaning of the (value, mask) pair is similar to the P4 mask expressions, as described in Section [#sec-cubes]: a key field k matches the table entry when k & mask == value & mask.

  • a lpm (longest prefix match) match kind on a key field is a specific type of ternary match where the mask is required to have a form in binary that is a contiguous set of 1 bits followed by a contiguous set of 0 bits. Masks with more 1 bits have automatically higher priorities. A mask with all bits 0 is legal.

Some table entries, in particular the ones with at least one ternary field, also require a priority value. A priority is a numeric value which is used to break ties when a particular key belongs to multiple sets. When table entries are specified in the P4 program the priorities are generated by the compiler; when entries are specified by the control-plane, the priority may need to be explicitly specified. Entries with higher priority are matched first. This specification does not mandate whether “higher” priorities are represented by higher or lower numeric values; this choice is left to the target implementation.

An example specifying entries for a table is given in Section [#sec-entries].

If a table has no key property, or if the value of its key property is the empty tuple, i.e. key = {}, then it contains no look-up table, just a default action—i.e., the associated lookup table is always the empty map.

Each key element can have an optional @name annotation which is used to synthesize the control-plane-visible name for the key field.

Note some implementations might only support a limited number of keys or a limited combinations of match_kind for the keys. The implementation should reject those cases with an error message in this case.

Actions

A table must declare all possible actions that may appear within the associated lookup table or in the default action. This is done with the actions property; the value of this property is always an actionList:

\~ Begin P4Grammar [INCLUDE=grammar.mdk:actionList]

  • [INCLUDE=grammar.mdk:actionRef]
    End P4Grammar

To illustrate, recall the example Very Simple Switch program in Section [#sec-vss-all]:

\~ Begin P4Example action Drop_action() { outCtrl.outputPort = DROP_PORT; }

action Rewrite_smac(EthernetAddress sourceMac) { headers.ethernet.srcAddr = sourceMac; }

table smac { key = { outCtrl.outputPort : exact; } actions = { Drop_action; Rewrite_smac; } } \~ End P4Example

  • The entries in the smac table may contain two different actions: Drop_action and Rewrite_mac.
  • The Rewrite_smac action has one parameter, sourceMac, which in this case will be provided by the control plane.

Each action in the list of actions for a table must have a distinct name—e.g., the following program fragment is illegal:

\~ Begin P4Example action a() {} control c() { action a() {} // Illegal table: two actions with the same name table t { actions = { a; .a; } } } \~ End P4Example

Each action parameter that has a direction (in, inout, or out) must be bound in the actions list specification; conversely, no directionless parameters may be bound in the list. The expressions supplied as arguments to an action are not evaluated until the action is invoked. Applying tables, whether directly via an expression like table1.apply().hit, or indirectly, are forbidden in the expressions supplied as action arguments.

\~ Begin P4Example action a(in bit\<32> x) { /* body omitted / } bit\<32> z; action b(inout bit\<32> x, bit\<8> data) { / body omitted */ } table t { actions = { // a; – illegal, x parameter must be bound a(5); // binding a’s parameter x to 5 b(z); // binding b’s parameter x to z // b(z, 3); – illegal, cannot bind directionless data parameter // b(); – illegal, x parameter must be bound // a(table2.apply().hit ? 5 : 3); – illegal, cannot apply a table here } } \~ End P4Example

Default action

The default action for a table is an action that is invoked automatically by the match-action unit whenever the lookup table does not find a match for the supplied key.

If present, the default_action property must appear after the action property. It may be declared as const, indicating that it cannot be changed dynamically by the control-plane. The default action must be one of the actions that appear in the actions list. In particular, the expressions passed as in, out, or inout parameters must be syntactically identical to the expressions used in one of the elements of the actions list.

For example, in the above table we could set the default action as follows (marking it also as constant):

\~ Begin P4Example const default_action = Rewrite_smac(48w0xAA_BB_CC_DD_EE_FF); \~ End P4Example

Note that the specified default action must supply arguments for the control-plane-bound parameters (i.e., the directionless parameters), since the action is synthesized at compilation time. The expressions supplied as arguments for parameters with a direction (in, inout, or out) are evaluated when the action is invoked while the expressions supplied as arguments for directionless parameters are evaluated at compile time.

Continuing the example from the previous section, the following are several legal and illegal specifications of default actions for the table t:

\~ Begin P4Example default_action = a(5); // OK - no control-plane parameters // default_action = a(z); – illegal, a’s x parameter is already bound to 5 default_action = b(z,8w8); // OK - bind b’s data parameter to 8w8 // default_action = b(z); – illegal, b’s data parameter is not bound // default_action = b(x, 3); – illegal: x parameter of b bound to x instead of z \~ End P4Example

Entries

While table entries are typically installed by the control plane, tables may also be initialized at compile time with a set of entries.

Declaring these entries with const entries is useful in situations where tables are used to implement fixed algorithms—defining table entries statically enables expressing these algorithms directly in P4, which allows the compiler to infer how the table is actually used and potentially make better allocation decisions for targets with limited resources.

Declaring entries with entries (without the const qualifier) enables one to specify a mix of some immutable entries that are always in the table, and some mutable entries that the control plane is allowed to later change or remove.

Entries declared in the P4 source are installed in the table when the program is loaded onto the target. Entries cannot be specified for a table with no key (see Sec. [#sec-table-keys]).

  • Table entries are defined using the following syntax:
    Begin P4Grammar tableProperty

    optAnnotations optCONST ENTRIES ‘=’ ‘{’ entriesList ‘}’ ;

[INCLUDE=grammar.mdk:entriesList]

[INCLUDE=grammar.mdk:optCONST]

[INCLUDE=grammar.mdk:entryPriority]

  • [INCLUDE=grammar.mdk:entry]
    End P4Grammar

Table entries defined using const entries are immutable—i.e., they can only be read by the control plane. The control plane is not allowed to remove or modify any entries defined within const entries, nor is it allowed to add entries to such a table. It is allowed for individual entries to have the const keyword before them, but this is redundant when the entries are declared using const entries.

Table entries defined using entries (without a const qualifier before it) may have const before them, or not, independently for each entry. Entries with const before them may not be modified or removed by the control plane. Entries without const may be modified or removed by the control plane. It is permitted for the control plane to add entries to such a table (subject to table capacity limitations), unlike tables declared with const entries.

Whether the control plane is allowed to modify a table’s default action at run time is determined by the table’s default_action table property (see Section [#sec-default-action]), independently of whether the control plane is allowed to modify the entries of the table.

The keysetExpression component of an entry is a tuple that must provide a field for each key in the table keys (see Sec. [#sec-table-props]). The table key type must match the type of the element of the set. The actionRef component must be an action which appears in the table actions list (and must not have the @defaultonly annotation), with all its arguments bound.

If no entry priorities are specified in the source code, and if the runtime API requires a priority for the entries of a table—e.g. when using the P4 Runtime API, tables with at least one ternary search key field—then the entries are matched in program order, stopping at the first matching entry. Architectures should define the significance of entry order (if any) for other kinds of tables.

Depending on the match_kind of the keys, key set expressions may define one or multiple entries. The compiler will synthesize the correct number of entries to be installed in the table. Target constraints may further restrict the ability of synthesizing entries. For example, if the number of synthesized entries exceeds the table size, the compiler implementation may choose to issue a warning or an error, depending on target capabilities.

  • To illustrate, consider the following example:
    Begin P4Example header hdr { bit\<8> e; bit\<16> t; bit\<8> l; bit\<8> r; bit\<1> v; }

struct Header_t { hdr h; } struct Meta_t {}

control ingress(inout Header_t h, inout Meta_t m, inout standard_metadata_t standard_meta) {

action a() { standard_meta.egress_spec = 0; }
action a_params(bit<9> x) { standard_meta.egress_spec = x; }

table t_exact_ternary {

key = {
        h.h.e : exact;
        h.h.t : ternary;
    }

actions = {
        a;
        a_params;
    }

default_action = a;

    const entries = {
        (0x01, 0x1111 &&& 0xF   ) : a_params(1);
        (0x02, 0x1181           ) : a_params(2);
        (0x03, 0x1111 &&& 0xF000) : a_params(3);
        (0x04, 0x1211 &&& 0x02F0) : a_params(4);
        (0x04, 0x1311 &&& 0x02F0) : a_params(5);
        (0x06, _                ) : a_params(6);
        _                         : a;
    }
}
  • }
    End P4Example

In this example we define a set of 7 entries, all of which invoke action a_params except for the final entry which invokes action a. Once the program is loaded, these entries are installed in the table in the order they are enumerated in the program.

Entry priorities

If a table has fields where their match_kinds are all exact or lpm, there is no reason to assign numeric priorities to its entries. If they are all exact, duplicate keys are not allowed, and thus every lookup key can match at most one entry, so there is no need for a tiebreaker. If there is an lpm field, the priority of the entry corresponds to the length of the prefix, i.e. if a lookup key matches multiple prefixes, the longest prefix is always the winner.

For tables with other match_kind values, e.g. at least one ternary field, in general it is possible to install multiple entries such that the same lookup key can match the key of multiple entries installed into the table at the same time. Control plane APIs such as P4Runtime API[5] and TDI[6] require control plane software to provide a numeric priority with each entry added to such a table. This enables the data plane to determine which of several matching entries is the “winner”, i.e. the one entry whose action is invoked.

Unfortunately there are two commonly used, but different, ways of interpreting numeric priority values.

The P4Runtime API requires numeric priorities to be positive integers, i.e. 1 or larger, and defines that entries with larger priorities must win over entries with smaller priorities. We will call this convention largest_priority_wins.

TDI requires numeric priorities to be non-negative integers, i.e. 0 or larger, and defines that entries with smaller priorities must win over entries with larger priorities. We will call this convention smallest_priority_wins.

We wish to support either of these conventions when developers specify priorities for initial table entries in the program. Thus there is a table property largest_priority_wins. If explicitly specified for a table, its value must be boolean. If true, then the priority values use the largest_priority_wins convention. If false, then the priority values use the smallest_priority_wins convention. If the table property is not present at all, then the default convention is true, corresponding to largest_priority_wins.

We also wish to support developers that want the convenience of predictable entry priority values automatically selected by the compiler, without having to write them in the program, plus the ability to specify entry priorities explicitly, if they wish.

In some cases, developers may wish the initial priority values to have “gaps” between their values, to leave room for possible later insertion of new entries between two initial entries. They can achieve this by explicitly specifying all priority values, of course, but as a convenience we define the table property priority_delta to be a positive integer value, with a default value of 1 if not specified for a table, to use as a default difference between the priorities of consecutive entries.

There are two steps that occur at compile time for a table with the entries property involving entry priorities:

  • Determine the value of the priority of every entry in the entries list.
  • Issue any errors or warnings that are appropriate for these priority values. Warnings may be suppressed via an appropriate @noWarn annotation.

These steps are performed independently for each table with the entries property, and each is described in more detail below.

In general, if the developer specifies a priority value for an entry, that is the value that will be used.

If the developer does not specify priority values for any entry, then the compiler calculates priority values for every entry as follows:

\~ Begin P4Pseudo // For this pseudocode, table entries in the entries list are // numbered 0 through n-1, 0 being the first to appear in order in the // source code. Their priority values are named prio[0] through // prio[n-1]. int p = 1; if (largest_priority_wins == true) { for (int j = n-1; j >= 0; j -= 1) { prio[j] = p; p += priority_delta; } } else { for (int j = 0; j \< n; j += 1) { prio[j] = p; p += priority_delta; } } \~ End P4Pseudo

If the developer specifies priority values for at least one entry, then in order to simplify the rules for determining priorities of entries without one in the source code, the first entry must have a priority value explicitly provided. The priorities of entries that do not have one in the source code (if any) are determined as follows:

\~ Begin P4Pseudo // Same conventions here as in the previous block of pseudocode above. // If entry j has a priority value specified in the source code, // prio_specified[j] is true, otherwise it is false. assert(prio_specified[0]); // compile time error if prio_specified[0] is false p = prio[0]; for (int j = 1; j \< n; j += 1) { if (prio_specified[j]) { p = prio[j]; } else { if (largest_priority_wins == true) { p -= priority_delta; } else { p += priority_delta; } prio[j] = p; } } \~ End P4Pseudo

This is the end of the first step: determining entry priorities.

The priorities determined in this way are the values used when the P4 program is first loaded into a device. Afterwards, the priorities may only change by means provided by the control plane API in use.

In the second step, the compiler issues errors for out of range priority values, and/or warnings for certain combinations of entry priorities that might be unintended by the developer, unless the developer explicitly disables those warnings.

If any priority values are negative, or larger than the maximum supported value, that is a compile time error.

If the annotation @noWarn("duplicate_priorities") is not used on the entries table property, then the compiler issues a warning if any two entries for the same table have equal priority values. Both P4Runtime and TDI leave it unspecified which entry is the winner if a lookup key matches multiple keys that all have the same priority, hence a warning is useful to less experienced developers that are unfamiliar with this unspecified behavior.

If the annotation @noWarn("duplicate_priorities") is used on the entries table property, then no warnings of this type are ever issued by the compiler. Using equal priority values for multiple entries in the same table is sometimes useful in reducing the number of hardware updates required when adding entries to such a table.

If the annotation @noWarn("entries_out_of_priority_order") is not used on the entries table property, then the compiler issues a warning if:

  • If largest_priority_wins is true for the table, and there is any pair of consecutive entries where prio[j] < prio[j+1], then a warning is issued for that pair of entries.
  • If largest_priority_wins is false for the table, and there is any pair of consecutive entries where prio[j] > prio[j+1], then a warning is issued for that pair of entries.

This warning is useful to developers that want the order that entries appear in the source code to match the relative priority of entries in the target device.

If the annotation @noWarn("entries_out_of_priority_order") is used on the entries table property, then no warnings of this type are ever issued by the compiler for this table. This option is provided for developers who explicitly choose to specify entries in an order that does not match their relative priority order.

The following example is the same as the first example in section [#sec-entries], except for the definition of table t_exact_ternary shown below.

\~ Begin P4Example table t_exact_ternary { key = { h.h.e : exact; h.h.t : ternary; }

actions = {
    a;
    a_params;
}

default_action = a;

largest_priority_wins = false;
priority_delta = 10;
@noWarn("duplicate_priorities")
entries = {
    const priority=10: (0x01, 0x1111 &&& 0xF   ) : a_params(1);
                       (0x02, 0x1181           ) : a_params(2); // priority=20
                       (0x03, 0x1000 &&& 0xF000) : a_params(3); // priority=30
    const              (0x04, 0x0210 &&& 0x02F0) : a_params(4); // priority=40
          priority=40: (0x04, 0x0010 &&& 0x02F0) : a_params(5);
                       (0x06, _                ) : a_params(6); // priority=50
}
  • }
    End P4Example

The entries that do not have an explicit priority specified will be assigned the priority values shown in the comments, because priority_delta is 10, and because of those entries that do have priority values specified.

Normally this program would cause a warning about multiple entries with the same priority of 40, but those warnings will be suppressed because of the @noWarn("duplicate_priorities") annotation.

Size

The size is an optional property of a table. When present, its value must always be a compile-time known value that is an integer. The size property is specified in units of number of table entries.

If a table is specified with a size property of value N, it is recommended that a compiler should choose a data plane implementation that is capable of storing N table entries. This does not guarantee that an arbitrary set of N entries can always be inserted in such a table, only that there is some set of N entries that can be inserted. For example, attempts to add some combinations of N entries may fail because the compiler selected a hash table with O(1) guaranteed search time. See “Size property of P4 tables and parser value sets” P4SizeProperty for further discussion on some P4 table implementations and what they are able to guarantee.

If a P4 implementation must dimension table resources at compile time, they may treat it as an error if they encounter a table with no size property.

Some P4 implementations may be able to dynamically dimension table resources at run time. If a size value is specified in the P4 program, it is recommended that such an implementation uses the size value as the initial capacity of the table.

Additional properties

A table declaration defines its essential control and data plane interfaces—i.e., keys and actions. However, the best way to implement a table may actually depend on the nature of the entries that will be installed at runtime (for example, tables could be dense or sparse, could be implemented as hash-tables, associative memories, tries, etc.) In addition, some architectures may support extra table properties whose semantics lies outside the scope of this specification. For example, in architectures where table resources are statically allocated, programmers may be required to define a size table property, which can be used by the compiler back-end to allocate storage resources. However, these architecture-specific properties may not change the semantics of table lookups, which always produce either a hit and an action or a miss—they can only change how those results are interpreted on the state of the data plane. This restriction is needed to ensure that it is possible to reason about the behavior of tables during compilation.

As another example, an implementation property could be used to pass additional information to the compiler back-end. The value of this property could be an instance of an extern block chosen from a suitable library of components. For example, the core functionality of the P414 table action_profile constructs could be implemented on architectures that support this feature using a construct such as the following:

\~ Begin P4Example extern ActionProfile { ActionProfile(bit\<32> size); // number of distinct actions expected } table t { key = { /* body omitted */ } size = 1024; implementation = ActionProfile(32); // constructor invocation } \~ End P4Example

Here the action profile might be used to optimize for the case where the table has a large number of entries, but the actions associated with those entries are expected to range over a small number of distinct values. Introducing a layer of indirection enables sharing identical entries, which can significantly reduce the table’s storage requirements.

Match-action unit invocation

A table can be invoked by calling its apply method. Calling an apply method on a table instance returns a value with a struct type with three fields. This structure is synthesized by the compiler automatically. For each table T, the compiler synthesizes an enum and a struct, shown in pseudo-P4:

\~ Begin P4Pseudo enum action_list(T) { // one field for each action in the actions list of table T } struct apply_result(T) { bool hit; bool miss; action_list(T) action_run; } \~ End P4Pseudo

The evaluation of the apply method sets the hit field to true and the field miss to false if a match is found in the lookup-table; if a match is not found hit is set to false and miss to true. These bits can be used to drive the execution of the control-flow in the control block that invoked the table:

\~ Begin P4Example if (ipv4_match.apply().hit) { // there was a hit } else { // there was a miss }

if (ipv4_host.apply().miss) { ipv4_lpm.apply(); // Look up the route only if host table missed } \~ End P4Example

The action_run field indicates which kind of action was executed (irrespective of whether it was a hit or a miss). It can be used in a switch statement:

\~ Begin P4Example switch (dmac.apply().action_run) { Drop_action: { return; } } \~ End P4Example

Match-action unit execution semantics

  • The semantics of a table invocation statement:
    Begin P4Example m.apply();

    End P4Example

is given by the following pseudocode (see also Figure [#fig-maudataflow]):

\~ Begin P4Pseudo apply_result(m) m.apply() { apply_result(m) result;

var lookupKey = m.buildKey(m.key); // using key block
action RA = m.table.lookup(lookupKey);
if (RA == null) {      // miss in lookup table
   result.hit = false;
   RA = m.default_action;  // use default action
}
else {
   result.hit = true;
}
result.miss = !result.hit;
result.action_run = action_type(RA);
evaluate_and_copy_in_RA_args(RA);
execute(RA);
copy_out_RA_args(RA);
return result;
  • }
    End P4Pseudo

The behavior of the buildKey call in the pseudocode above is to evaluate each key expression in the order they appear in the table key definition. The behavior must be the same as if the result of evaluating each key expression is assigned to a fresh temporary variable, before starting the evaluation of the following key expression. For example, this P4 table definition and apply call:

\~ Begin P4Example bit\<8> f1 (in bit\<8> a, inout bit\<8> b) { b = a + 5; return a >> 1; } bit\<8> x; bit\<8> y; table t1 { key = { y & 0x7 : exact @name(“masked_y”); f1(x, y) : exact @name(“f1”); y : exact; } // … rest of table properties defined here, not relevant to example } apply { // assign values to x and y here, not relevant to example t1.apply(); } \~ End P4Example

is equivalent in behavior to the following table definition and apply call:

\~ Begin P4Example // same definition of f1, x, and y as before, so they are not repeated here bit\<8> tmp_1; bit\<8> tmp_2; bit\<8> tmp_3; table t1 { key = { tmp_1 : exact @name(“masked_y”); tmp_2 : exact @name(“f1”); tmp_3 : exact @name(“y”); } // … rest of table properties defined here, not relevant to example } apply { // assign values to x and y here, not relevant to example tmp_1 = y & 0x7; tmp_2 = f1(x, y); tmp_3 = y; t1.apply(); } \~ End P4Example

Note that the second code example above is given in order to specify the behavior of the first one. An implementation is free to choose any technique that achieves this behavior[7].

We can describe the computational model of a match-action pipeline, embodied by a control block: the body of the control block is executed, similarly to the execution of a traditional imperative program:

  • At runtime, statements within a block are executed in the order they appear in the control block.
  • Execution of the return statement causes immediate termination of the execution of the current control block, and a return to the caller.
  • Execution of the exit statement causes the immediate termination of the execution of the current control block and of all the enclosing caller control blocks.
  • Applying a table executes the corresponding match-action unit, as described above.

P4 allows controls to invoke the services of other controls, similar to subroutines. To invoke the services of another control, it must be first instantiated; the services of an instance are invoked by calling it using its apply method.

  • The following example shows a control invocation:
    Begin P4Example control Callee(inout IPv4 ipv4) { /* body omitted */ } control Caller(inout Headers h) { Callee() instance; // instance of callee apply { instance.apply(h.ipv4); // invoke control } }

    End P4Example

As with parsers, when a control is instantiated, local instantiations of stateful objects are evaluated recursively. That is, each instantiation of a control has a unique set of local tables, extern objects, inner control instances, etc. Thus, in general, invoking a control instance twice is not the same as invoking two copies of the same control instance. Note however, that local variables do not persist across invocations of the control. This semantics also applies to direct invocation (see Section [#sec-direct-invocation]).

When a control is instantiated, all its local declarations of stateful instantiations are evaluated recursively. Each instantiation of a control will have a unique set of local tables, extern objects, and inner control instances. Thus, invoking a control instance twice is different from invoking two control instances each once, where the former accesses the same local stateful constructs while the latter access two different copies.

The exactly-once evaluation only applies to local stateful instantiations. For local variable declarations, whether in the apply block or out, and whether with initializers or not, they are always evaluated when a control instance is invoked. That is, local variables in a control never persist across invocations. For variables declared outside the apply block, they are evaluated at the beginning of execution.

All the behavior above also applies to direct invocation (see Section [#sec-direct-invocation]).
